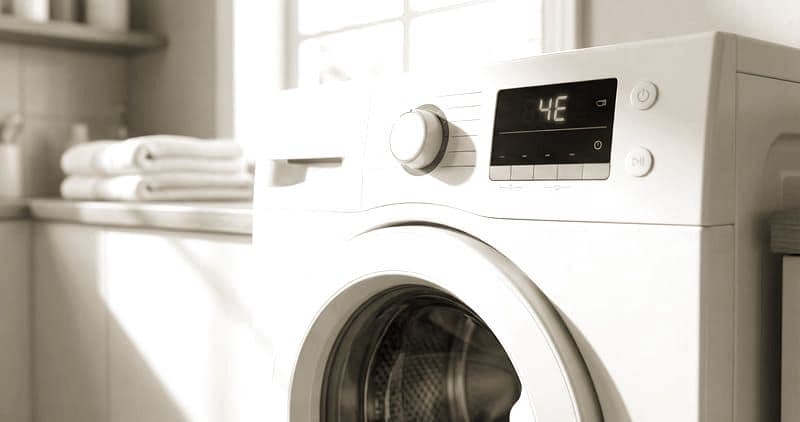

Samsung Washer Tripping Breaker — Ground Fault, Motor Short, and Wiring Diagnosis

A Samsung washer that trips the circuit breaker or GFCI outlet represents an electrical safety issue that must be diagnosed before further use. The breaker trips because current is flowing through an unintended path — either to ground (ground fault) or drawing more current than the circuit's rated capacity (overcurrent). Both conditions are dangerous: ground faults indicate electricity is reaching conductive surfaces that could shock a person, and overcurrent indicates a short circuit generating heat.

Breaker vs GFCI: Different Failure Modes

Circuit breaker trips (at panel): Overcurrent — the washer is drawing more than 15 or 20 amps (depending on circuit rating). Caused by short circuits in motor windings, heater elements, or wiring.

GFCI trips (at outlet): Ground fault — current is leaking from the hot conductor to ground through an unintended path (usually through water to the machine frame). GFCI trips at only 4-6 milliamps of leakage — far more sensitive than the breaker.

Samsung-Specific Causes

1. Motor Winding Short to Ground (25% of cases)

Samsung's direct-drive motor (WF front-load) mounts directly to the rear of the outer tub. The stator windings are lacquer-insulated copper wire. When insulation degrades — from age, heat cycling, or most critically, water intrusion from a failed rear bearing seal — the windings can short to the motor frame (ground). This causes massive current draw that trips the breaker instantly.

Samsung connection to spider arm: When the spider arm corrodes, the shaft surface degrades the bearing seal, water enters the motor area. This creates a chain reaction: spider corrosion → seal failure → water reaches stator → insulation breakdown → ground fault.

DIY Difficulty: Moderate (diagnosis) to Hard (motor replacement) Parts Cost: $150–$400 (stator assembly) Professional Repair Cost: $300–$550

2. Heater Element Leakage to Ground (20% of cases — models with internal heaters)

On Samsung WF models with Steam/Sanitize cycles, the internal heater element is immersed in water. If the element's outer sheath develops a hairline crack, water contacts the inner heating wire and creates a path to ground through the water and tub. This trips GFCI outlets immediately when the heater energizes.

Timing clue: If the breaker/GFCI trips specifically during the heating phase (2-5 minutes into the wash on hot cycles), the heater element is the likely culprit.

Test: Measure resistance from each heater terminal to the machine frame/ground. Should read infinite (no connection). Any measurable resistance = leakage path exists.

DIY Difficulty: Moderate Parts Cost: $40–$100 (heater element) Professional Repair Cost: $150–$300

3. Water on Electrical Components (18% of cases)

Samsung's boot seal leaks, pump seal failures, and supply hose drips can route water onto electrical components. Water on the control board, motor connectors, or harness junctions creates current paths to ground. This often causes intermittent tripping — the machine may work fine for several cycles then trip when water accumulates enough to bridge contacts.

Common Samsung leak-to-electrical paths:

• Boot seal tear dripping onto the door lock connector (WF models)
• Pump seal leak dripping onto pump wiring below
• Condensation dripping from the top panel onto the control board

Fix: Identify and repair the leak source. Dry all electrical connections thoroughly. Apply dielectric grease to connectors in the leak path to prevent future issues.

4. Wire Harness Damage (15% of cases)

Harness insulation chafes against sheet metal edges inside the machine. Over years of vibration, a bare conductor contacts the machine frame, creating a dead short. This trips the breaker instantly — no gradual degradation, no intermittent behavior (unless the wire only contacts the frame during high-vibration spin cycles).

Samsung-specific routing: The main harness on WF models routes from the control board (top-rear) down the left side wall to the motor, pump, heater, and door lock. Check where the harness passes through sheet metal grommets — the grommet rubber deteriorates and exposes the harness to metal edges.

DIY Difficulty: Moderate (finding the damage is harder than repairing it) Parts Cost: $20–$80 Professional Repair Cost: $150���$300

5. Noise Filter (EMI Filter) Internal Short (12% of cases)

Samsung's noise filter (DC29-00006C) can fail in short-circuit mode rather than its more common open-circuit failure. When the filter's internal capacitor shorts, it creates a low-impedance path from line to ground — tripping the breaker the instant the machine is plugged in (before you even press Power).

Timing clue: If the breaker trips the moment you plug in the machine (before turning it on), the noise filter has shorted. The machine does not need to be running for this failure — just plugged in.

DIY Difficulty: Easy to Moderate Parts Cost: $20–$50 Professional Repair Cost: $100–$180

6. Shared Circuit Overload (10% of cases)

Samsung washers draw 10-15 amps during spin and heating phases. If the laundry circuit shares load with other appliances (common in older Sacramento homes with fewer circuits), the combined draw exceeds the breaker rating during peak demand. This is not a washer defect — it is a home wiring issue.

Test: Ensure nothing else is running on the same circuit when the washer operates. If it no longer trips, the issue is circuit sharing. An electrician can install a dedicated 20-amp circuit for the washer ($200-$500).

Diagnostic Sequence

1. When does it trip? Immediately on plug-in = noise filter short. During fill = heater element (if hot selected). During spin = motor short or overload. Random/intermittent = water on components.
2. Breaker or GFCI? GFCI (at outlet) = ground fault (small leakage current). Breaker (at panel) = overcurrent (large fault current).
3. Consistent or intermittent? Consistent = hard short (motor, heater, filter). Intermittent = water path or loose wire.

Safety Warning

Do NOT bypass the breaker or GFCI to continue operating the washer. These devices protect against electrocution and fire. A tripping breaker is telling you electricity is going where it should not. Identify and repair the fault before further operation.

FAQ

Q: My Samsung washer trips the GFCI outlet but works fine on a non-GFCI outlet — is it safe?

No — the GFCI is detecting a ground fault (current leaking to ground) that the regular outlet ignores. The fault exists on both outlets but only the GFCI is sensitive enough to detect it. Operating on a non-GFCI outlet with an active ground fault creates electrocution risk. Diagnose and repair the fault.

Q: My Samsung washer only trips the breaker during spin — why?

Spin-only trips indicate either: (1) motor winding short that only manifests at high speed/current, or (2) a loose wire that contacts ground only during high vibration (wire moves during spin). Also check if the circuit is shared — spin draws maximum current (10-15 amps) which may exceed a shared circuit's remaining capacity.

Q: Can water cause my Samsung washer to trip the breaker?

Yes — water from a boot seal leak, pump seal failure, or condensation can reach electrical components and create current paths to ground. This often causes intermittent tripping. Inspect for water near the control board, motor connectors, and pump wiring. Fix the leak source and dry all components.

---
