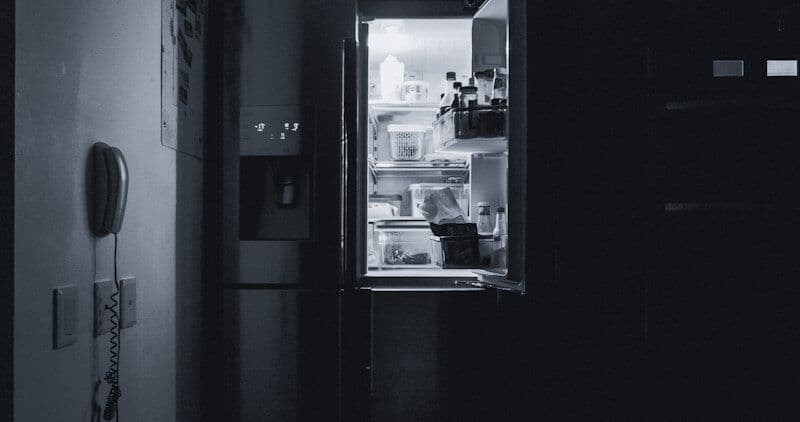

Whirlpool Refrigerator Switch Replacement — Door Switch, Dispenser Switch & Light Switch

Whirlpool refrigerators use several switches for different functions. The door switch controls the interior light and also signals the control board that the door is open (disabling the evaporator fan). The dispenser switch activates the water and ice dispenser mechanisms. The light switch may be combined with the door switch or separate.

Door Switch

Location: In the door frame, pressed by the door when closed. Symptoms when failed:

• Interior light stays on with door closed — the switch is stuck open, and the light stays on. This generates heat inside the refrigerator.
• Evaporator fan does not run — the board thinks the door is open and keeps the fan off to prevent cold air waste.
• No light when door opens — switch stuck closed, light circuit never activates.

Testing: Multimeter on continuity. Press the switch — should toggle between open and closed. No change = failed.

Cost: $5-15 OEM. Replacement: 5 minutes — press out the old switch, press in the new one.

Dispenser Switches

Location: Behind the dispenser panel on the door. Common models: Paddle-style (press the glass against a mechanical paddle) or electronic touch (capacitive sensor on the panel). Symptoms: Water or ice dispenser does not activate, or activates continuously (stuck switch).

Mechanical paddle switch cost: $10-25. Electronic dispenser board: $50-150.

Common Mistakes

• Replacing the light bulb when the door switch is stuck closed — the bulb is fine, the switch is not activating the light circuit.
• Ignoring a stuck-open door switch — the interior light stays on continuously, adding heat inside the cabinet. The compressor works harder, and the light bulb burns out faster.

FAQ

My refrigerator light stays on — is it the switch?

Most likely. If the light stays on with the door closed, the switch is stuck in the open (door-open) position. Replace the switch ($5-15).

Door Switch — Detailed Diagnosis

How it works: When the door closes, a spring-loaded plunger is pushed in, changing the switch contacts. This simultaneously turns off the interior light and tells the control board the door is closed (allowing the evaporator fan to run). When you open the door, the plunger releases, the light turns on, and the fan stops.

On WRS (side-by-side) models, there is typically one switch per door — each controlling its own compartment light and fan signal. On WRF (French door) models, the switches are in the top frame between the two doors.

Additional symptoms when failed:

• Refrigerator temperature fluctuates — if the switch is intermittent (loose connection or worn plunger), the fan cycles erratically, causing uneven cooling
• Door ajar alarm sounds with door closed — the switch is not detecting the closed door

Testing: Use a multimeter set to continuity. Remove the switch by pressing the release tab on the frame and pulling it out. Press and release the plunger — the meter should toggle between continuity and open circuit. No change in either direction indicates failure. Also check that the plunger moves freely and is not stuck due to food residue.

Dispenser Switches — Types and Diagnosis

Paddle-style (mechanical): The glass presses against a hinged paddle that mechanically activates a microswitch behind the panel. You can hear a distinct click when pressed firmly. Common on WRS side-by-side and older top-freezer models.

Electronic touch panel: Capacitive sensors on a membrane overlay detect finger position and send signals to a dispenser control board. No mechanical switch — the control board interprets touch input and activates the appropriate solenoid or motor. Common on WRF French door and premium WRS models.

Symptoms of dispenser switch failure:

• Water or ice does not dispense when paddle is pressed — switch contacts worn or spring broken
• Dispenser activates continuously without pressing — switch stuck in closed position (safety hazard)
• Dispenser works intermittently — loose wire connection or worn switch contacts
• Wrong function activates — on combined water/ice/crush switches, internal contacts corrode and cross-connect

Diagnostic Approach — Which Switch Is the Problem?

Work through this sequence when a Whirlpool refrigerator has switch-related symptoms:

1. Door ajar alarm with door closed: Door switch not engaging. Check the switch plunger and door alignment — a sagging door may not press the switch fully. Adjust the hinge or shim the switch before replacing.

2. Interior light stays on with door closed: Confirm by placing a smartphone inside recording video. If the light is on, the door switch is stuck open — replace immediately (heat from the light degrades food quality).

3. Evaporator fan not running with doors closed: Feel for air flow from vents inside the freezer with door closed 2-3 minutes. No air flow suggests the fan is off because the door switch signals the door is open.

4. Dispenser issues: If interior light and fan work correctly, the door switch is fine — problem is in the dispenser switch or dispenser control board.

Cost Breakdown

Step-by-Step Door Switch Replacement

1. Open the door and locate the switch in the door frame
2. Press the retaining tab with a small flathead screwdriver or plastic pry tool
3. Pull the switch straight out of the frame
4. Disconnect the wire connector (squeeze the locking tab and pull apart)
5. Connect the wire connector to the new switch
6. Push the new switch into the frame until the retaining clip clicks
7. Close the door and verify the light turns off and the fan starts running

Time: 5 minutes. Tools: Small flathead screwdriver only.

DIY vs Professional Assessment

Door switch replacement is one of the simplest refrigerator repairs — no tools required beyond a small flathead screwdriver, and the entire job takes 5 minutes. The part costs $5-15. This is always a DIY-recommended repair.

Dispenser switch replacement is moderate difficulty — requires removing the dispenser panel and reconnecting wires. If the issue is the electronic dispenser control board ($50-150), the repair is still straightforward but the diagnostic step matters.

Professional recommended when: The symptom is intermittent (could be wiring, switch, or board), or the dispenser has an electronic control board and you are unsure whether the issue is the board or a downstream component.

Frequently Asked Questions

Can a stuck door switch damage my refrigerator?

Yes, indirectly. The continuously burning light adds heat, raising compartment temperature. The evaporator fan may not run, reducing cooling efficiency. The compressor runs more to compensate, increasing energy use and wear. Replace the switch promptly.

My water dispenser works but the ice dispenser does not — which switch?

If both functions share the same paddle, the issue is likely the ice dispensing motor or auger, not the switch (since the switch works for water). If they have separate paddles, test the ice-side switch independently.

How do I know if my Whirlpool has a mechanical or electronic dispenser?

Press the dispenser actuator and listen. Mechanical: you hear a distinct click from the microswitch. Electronic: no click — the touch-sensitive panel communicates silently with the dispenser board. Membrane overlay with printed buttons indicates electronic.

My refrigerator door does not seem to close fully — could this be a switch issue?

Not directly. The switch detects whether the door is closed, but does not cause closure problems. Check the door gasket (magnetic seal) for debris or damage, verify the door hinges are tight, and check that nothing inside is preventing full closure. Once the door closes properly, the switch should work.

---
