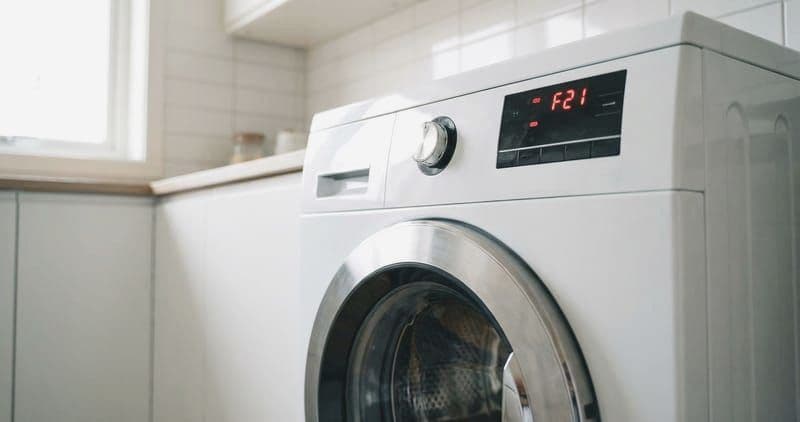

Whirlpool WFW6620 washer — Issues & Fixes

<strong>Quick answer:</strong> The Whirlpool WFW6620 washer is a well-documented washer with known repair patterns. Most common issue: Door boot gasket tears or molds. If your Whirlpool WFW6620 washer is giving you trouble, start here. This complete reference covers the full series — ranked common failures, diagnostic error codes, OEM replacement parts, active <a href="https://www.cpsc.gov/Recalls" rel="nofollow noopener" target="_blank">recall</a> status, and data-driven repair-vs-replace guidance so you can make the right call for your situation.

Models Covered in This Guide#

This guide covers the Whirlpool WFW6620 series washers, manufactured from 2019-2025. The following model numbers share the same platform, parts catalog, and common failure modes:

• WFW6620HW
• WFW6620HC
• WFW6620HW2

All models listed above use the same core components and are serviced with the same replacement parts. If your specific model number starts with the same prefix but is not listed, this guide still applies — Whirlpool uses common platforms across model variants within a series.

Quick Specifications#

Top 5 Most Common Problems#

Based on repair data for Whirlpool WFW6620 washers, these are the most frequent issues ranked by how often we see them in service calls. Understanding these common failures helps you identify problems early and make informed repair decisions.

1. Door boot gasket tears or molds (22% of repairs)#

Door boot gasket tears or develops mold — water leaks from front during wash, visible mold on rubber fold

Frequency: This issue accounts for approximately 22% of all service calls on the Whirlpool WFW6620 series.

2. Drain pump clogged with debris (18% of repairs)#

Drain pump clogged with debris — standing water after cycle, F21/F9E1 error

Frequency: This issue accounts for approximately 18% of all service calls on the Whirlpool WFW6620 series.

3. Load & Go dispenser valve sticks (14% of repairs)#

Load & Go dispenser valve sticks open — excess detergent overdoses loads, excessive suds

Frequency: This issue accounts for approximately 14% of all service calls on the Whirlpool WFW6620 series.

4. Bearing failure (12% of repairs)#

Bearing failure — loud grinding during spin cycle, rust-colored water under unit

Frequency: This issue accounts for approximately 12% of all service calls on the Whirlpool WFW6620 series.

5. Control board relay fails (8% of repairs)#

Control board relay fails — washer does not respond to inputs, display blank or erratic

Frequency: This issue accounts for approximately 8% of all service calls on the Whirlpool WFW6620 series.

Error Codes for Whirlpool WFW6620#

The Whirlpool WFW6620 series may display the following error codes on its control panel or digital display. Error codes are your washer's way of telling you what component has failed or what condition has been detected. Click any code below for a detailed diagnosis guide with step-by-step repair instructions:

• Error F9 E1 — click for full diagnosis and fix
• Error F5 E2 — click for full diagnosis and fix
• Error F3 E1 — click for full diagnosis and fix

If your Whirlpool WFW6620 is displaying an error code not listed above, try a power reset first: unplug the unit (or flip the circuit breaker) for 60 seconds, then restore power. Many transient errors clear with a simple reset. If the code returns, the underlying issue requires professional diagnosis.

Recall Status#

There are no active recalls on the Whirlpool WFW6620 series as of 2026-05-28. We recommend checking the Consumer Product Safety Commission at cpsc.gov periodically with your specific model number, as recalls can be issued at any time. You can also sign up for email alerts on the CPSC website to be notified if a recall is issued for your appliance.

Repair vs. Replace: When Is It Worth Fixing Your Whirlpool WFW6620?#

This is the most common question we hear from Whirlpool WFW6620 owners. The answer depends on three factors: the age of the unit, the cost of the repair, and the cumulative repair history.

General rule for the Whirlpool WFW6620: If the unit is under 10 years old and the repair costs less than 50% of a new equivalent model, repair is almost always the better value. After 10 years, evaluate the total repair history — if cumulative repairs over the past 2-3 years exceed 40% of replacement cost, upgrading to a new unit provides better long-term value and a fresh warranty.

Repair Decision Matrix by Age#

| Unit Age | Minor Repair | Major Repair | Critical Repair | |---|---|---|<p>This matches what our service teams see in practice: if your whirlpool wfw6620 washer is giving you trouble, start here..</p>

---| | Under 5 years | Repair | Repair | Repair (usually) | | 5-10 years | Repair | Evaluate total history | Consider replacing | | Over 10 years | Repair if otherwise healthy | Consider replacing | Replace recommended |

Before You Call for Service#

Before scheduling a repair, try these basic diagnostics: verify the water supply valves behind the washer are fully open, check the drain hose for kinks, confirm the unit is level, and inspect the door gasket folds for small items like socks or coins. For error codes, try a power reset — unplug for 60 seconds, then plug back in. Clean the drain pump filter (located at the front lower panel) monthly — trapped coins, hair ties, and fabric debris cause most drain failures.

Related Troubleshooting Guides#

If your Whirlpool WFW6620 is experiencing a specific symptom, these detailed guides walk you through the diagnosis process step by step:

• Whirlpool Washer Not Spinning
• Whirlpool Washer Not Draining
• Whirlpool Washer Leaking

What Are the Best Long-Term Ownership Tips?#

To extend the life of your front-load washer, leave the door ajar between loads to prevent mold growth on the door gasket. Use only HE detergent in the recommended amount — excess detergent causes mold, odors, and pressure switch damage. Run a cleaning cycle monthly with washer cleaner or a cup of white vinegar. Wipe the door gasket folds dry after each use. The Load & Go reservoir should be emptied and rinsed every 30 days.

Frequently Asked Questions#

How do I clean mold from my Whirlpool WFW6620 door gasket?#

Mix equal parts white vinegar and baking soda into a paste. Pull back the gasket folds and apply the paste to all moldy areas. Let it sit for 30 minutes, then scrub with an old toothbrush and wipe clean with a damp cloth. For severe mold, use a 50/50 bleach-water solution instead. Prevent recurrence by leaving the door open between loads and wiping the gasket dry after each use.

What does F9 E1 mean on my Whirlpool WFW6620?#

F9 E1 indicates a long drain — the washer did not drain within 8 minutes. Check the drain pump filter for debris (front lower panel), verify the drain hose is not kinked or elevated more than 96 inches, and confirm the standpipe is not clogged. If the filter is clean and hose is clear, the drain pump motor is likely failing — part W10876600,.

Is the WFW6620 Load & Go dispenser worth using?#

Yes, when maintained properly. The Load & Go reservoir holds enough HE detergent for about 40 loads and auto-dispenses the correct amount based on load size. The common failure is the dispensing valve sticking due to dried detergent buildup. Rinse the reservoir every 30 days with warm water to prevent this. If the valve sticks open, loads get over-dosed with detergent, causing excessive suds and rinse issues.
